350W KIT · 36V

A conversion built around your bicycle

A 36V system with a compact geared rear hub motor. Select only compatible options and have the installation checked before use.

Rated power350W
Electrical system36V
InstallationRear

FRAME COMPATIBILITY

Dropouts and spacing

  • Reference width: 135/150 mm.
  • The axle must sit fully without forcing or spreading the frame.
  • Measure the inner width, thickness and opening of both dropouts.
  • Frame and welds must be free from cracks, deformation and corrosion.
  • Confirm that the axle sits fully in both dropouts; never spread or force the frame.

WHEEL AND DRIVETRAIN

What must fit

  • Available wheels: 16”, 20”, 22”, 24”, 26”, 27.5”, 29” and 700C.
  • Drivetrain: threaded freewheel; a cassette does not fit directly.
  • Check chain line and clearance around the motor.
  • With a disc brake, check diameter, mounting, caliper and spacers.

BATTERY AND DISPLAY

Available configurations

  • Battery: 36V 17.5Ah, or no battery.
  • Display: SW900 or UKC1.
  • Battery, controller and accessory voltage must match.
  • Never connect a battery of another voltage.

REAL PERFORMANCE

Indicative figures

Supplier catalogue rated speed: 28 km/h. This is a non-guaranteed catalogue figure. This configuration is not presented as an EPAC or as approved for public roads.

WHAT IS INCLUDED

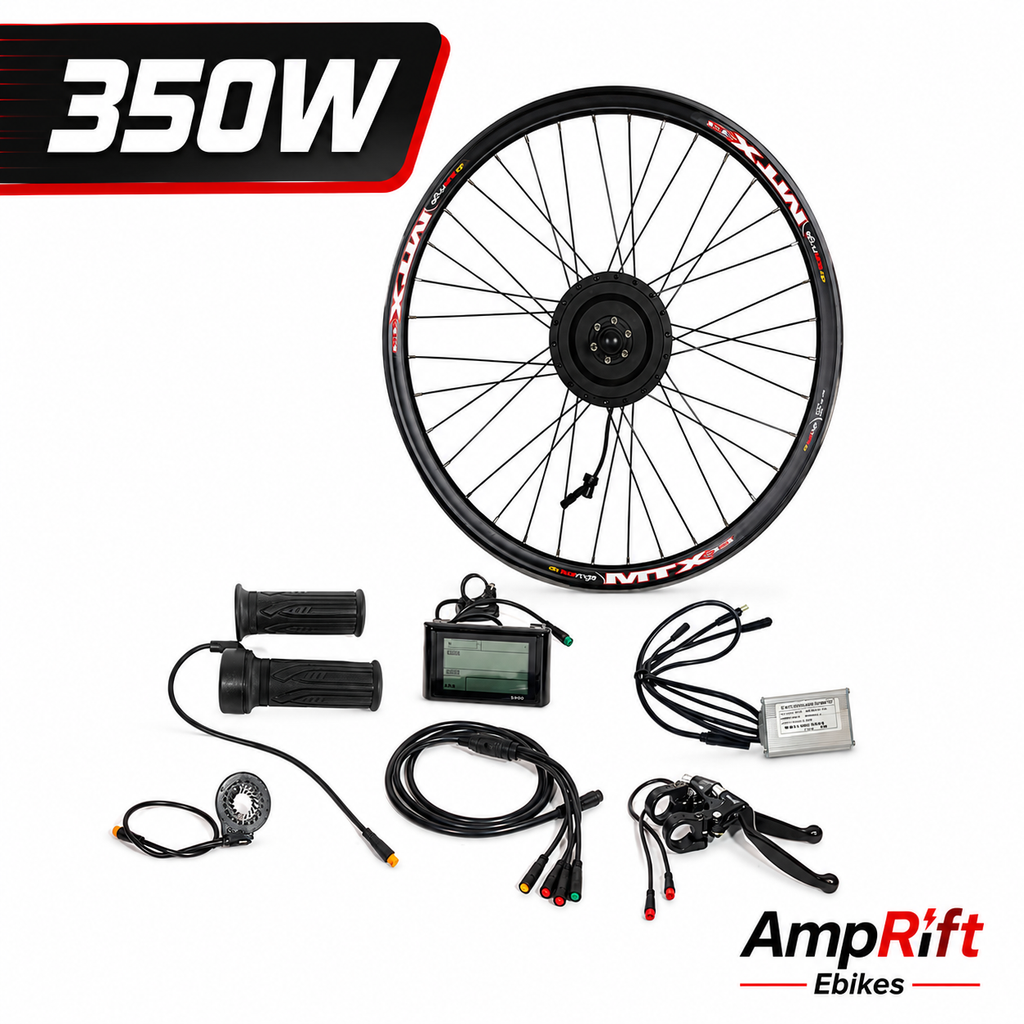

Main components

  • 350W geared rear motor laced into the rim
  • 18A controller with waterproof connector
  • SW900 or UKC1 display
  • Thumb throttle
  • PAS sensor
  • Two brake sensors or levers
  • Main wiring harness
  • Controller bag depending on configuration

BEFORE INSTALLATION

Mandatory check

  • Confirm frame dimensions and all clearances.
  • Use brakes and tyres suited to the project’s weight and speed.
  • Never test the motor with the wheel incorrectly secured.
  • Have high-power configurations checked by an experienced person.

Intended use: 350W configuration for private/off-road use unless the complete vehicle has the required approval. Use only a compatible 36V battery. Final compatibility depends on the bicycle; never force an incompatible fit.

WHY CHOOSE THIS KIT

Convert your bike. Make it yours.

Configure your AmpRift 350W Kit with the available options and check frame compatibility before ordering.

PERFORMANCE

Urban boost

Responsive assistance for daily journeys and urban riding, while keeping power delivery progressive.

COMPATIBILITY

Ready for your bike

Choose the wheel, display and battery from the available options. Check the dropouts, brakes and drivetrain before buying.

EQUIPMENT

Complete conversion kit

Rear hub motor, controller, display, throttle, brake levers, PAS and waterproof wiring are included.

DELIVERY

Standard shipping included

DDP sea shipping is included for Spain and the EU. The usual total estimate is 60–70 days for production and transport.

Before buying: final compatibility depends on the dimensions and components of each bicycle. Contact us before ordering if you are unsure.
